1factory recognizes the following Sampling declarations:
| Rule | Examples | Explanation |
| 1 per lot | 1 per lot | Indicates one piece per lot, regardless of place or order |
| N | 5 10 76 | Fixed quantity, regardless of lot size |
| N% | 100% 10% 45% | Certain percentage of the lot |
| 1 in N | 1 in 10 1 in 5 1 in 17 | Alternating one piece per N |
| Setup start of roll first piece first piece only | Must be verbatim | First item to be received / come off the line |
| First and last start and end of roll | Must be verbatim | First and last items to be received / come off the line |
| First & Last | First and Last First & Last | Enter "First and Last" or "First & Last" in the sampling rule field for a feature, and only the first and last rows of each inspection will require data entry. |
| First, Middle & Last | First, Middle and Last | Enter "First, Middle and Last" in the sampling rule field, and only the first, middle, and last rows of each inspection will require data entry. |
Table #1: Sampling Plan + AQL:
Here is the full list of Sampling Plans + AQL combinations recognized by 1factory, with the most commonly used combinations highlighted in blue:
| Squeglia C=0 | Original | ANSI Z1.4 Level II | ANSI Z1.4 Level I | MIL STD 1916 ATTRIBUTE | MIL STD 1916 VARIABLE |
| C=0 0.010 | ORIG C=0 0.010 | Z1.4_II 0.010 | Z1.4_I 0.010 | MIL-1916-A I-R | MIL-1916-V I-R |
| C=0 0.015 | ORIG C=0 0.015 | Z1.4_II 0.015 | Z1.4_I 0.015 | MIL-1916-A I | MIL-1916-V I |
| C=0 0.025 | ORIG C=0 0.025 | Z1.4_II 0.025 | Z1.4_I 0.025 | MIL-1916-A II | MIL-1916-V II |
| C=0 0.040 | ORIG C=0 0.040 | Z1.4_II 0.040 | Z1.4_I 0.040 | MIL-1916-A III | MIL-1916-V III |
| C=0 0.065 | ORIG C=0 0.065 | Z1.4_II 0.065 | Z1.4_I 0.065 | MIL-1916-A IV | MIL-1916-V IV |
| C=0 0.10 | ORIG C=0 0.10 | Z1.4_II 0.10 | Z1.4_I 0.10 | MIL-1916-A V | MIL-1916-V V |
| C=0 0.15 | ORIG C=0 0.15 | Z1.4_II 0.15 | Z1.4_I 0.15 | MIL-1916-A VI | MIL-1916-V VI |
| C=0 0.25 | ORIG C=0 0.25 | Z1.4_II 0.25 | Z1.4_I 0.25 | MIL-1916-A VII | MIL-1916-V VII |
| C=0 0.40 | ORIG C=0 0.40 | Z1.4_II 0.40 | Z1.4_I 0.40 | MIL-1916-A VII-T | MIL-1916-V VII-T |
| C=0 0.65 | ORIG C=0 0.65 | Z1.4_II 0.65 | Z1.4_I 0.65 | ||
| C=0 1.0 | ORIG C=0 1.0 | Z1.4_II 1.0 | Z1.4_I 1.0 | ||
| C=0 1.5 | ORIG C=0 1.5 | Z1.4_II 1.5 | Z1.4_I 1.5 | ||
| C=0 2.5 | ORIG C=0 2.5 | Z1.4_II 2.5 | Z1.4_I 2.5 | ||
| C=0 4.0 | ORIG C=0 4.0 | Z1.4_II 4.0 | Z1.4_I 4.0 | ||
| C=0 6.5 | ORIG C=0 6.5 | Z1.4_II 6.5 | Z1.4_I 6.5 | ||
| C=0 10.0 | ORIG C=0 10.0 | Z1.4_II 10.0 | Z1.4_I 10.0 |

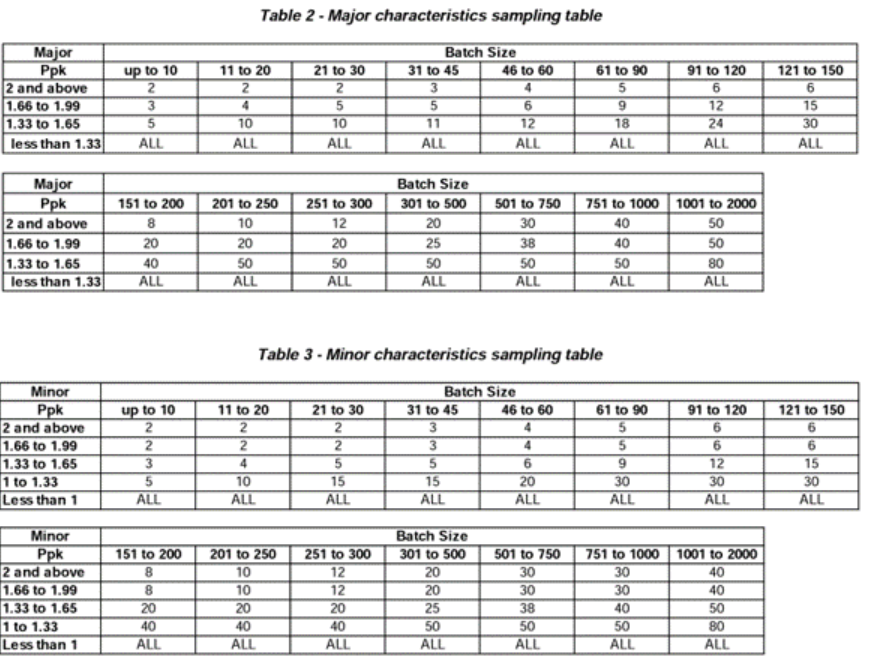

Table #2: AS13002 Sampling:
Below is the details of the sampling table that 1factory supports for AS13002. For example, a sampling requirement of Major Characteristics with a Ppk range of 1.66 to 1.99, would be input into 1factory as PPP_MAJ 1.66-1.99.
Note:
1. There is a single space between the Plan Name and the AQL level.
2. The Plan names and AQL levels must match the above list EXACTLY (including decimal places).
3. We recommend adding the most commonly used Sampling Plans and AQLs to your List of Values for Sampling as shown below
1. There is a single space between the Plan Name and the AQL level.
2. The Plan names and AQL levels must match the above list EXACTLY (including decimal places).
3. We recommend adding the most commonly used Sampling Plans and AQLs to your List of Values for Sampling as shown below
4. The Z1.4 and MIL STD levels are defined with Roman Numerals I, II etc.
